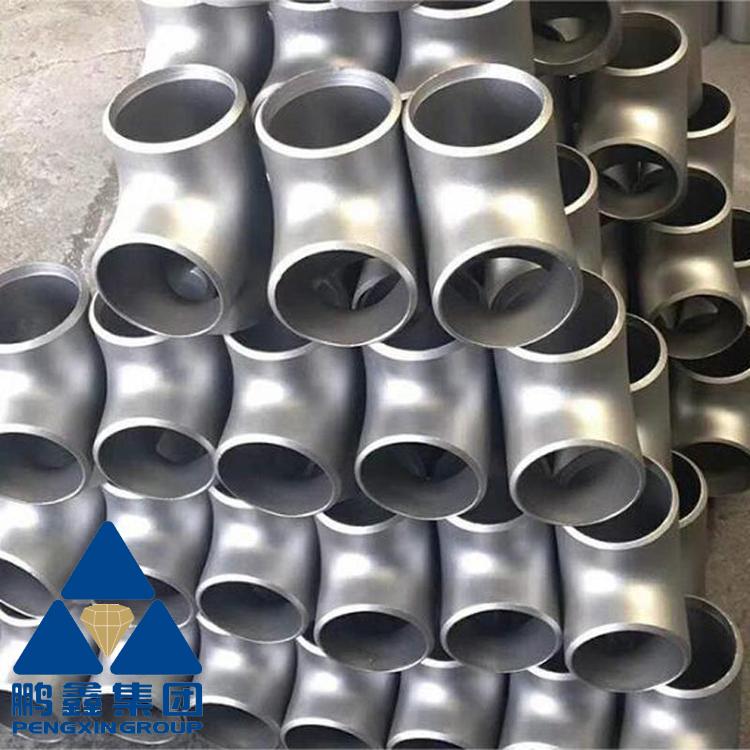

CE A234 WPB DN250xDN200 SCH 40 Change Fluid Direction carbon steel tee Asme B16.9 T Connector Plumbing

The tee fittings is a kind of chemical pipe fittings with three openings, one inlet, two exits, or two imports and one outlet, which have T shape and Y shape, equal diameter pipe mouth, and different diameter pipe mouth, which are used for three identical or different pipe pools. The main function of the three links is to change the direction of the fluid.

Classification
By size of pipe
The nozzle ends of the equal diameter tee are of the same size;
The size of the pipe is the same, and the size of the branch pipe is smaller than that of the supervisor.
By process

1. hot pressing
The three-way hot pressing forming is to flatten the tube billet larger than the three-way diameter to the size of the three-way diameter. The tube billet is heated and put into the forming die. Under the action of pressure, the tube billet is compressed radially, and the metal flows in the direction of branch pipe and forms branch pipe under the drawing of punching die. The whole process is formed by the radial compression of the tube billet and the tensile process of the branch pipe. Unlike the hydraulic bulging three-way, the metal of the hot-pressed three-way branch pipe is compensated by the radial motion of the tube billet, so it is also called the radial compensation process.
Due to the use of heating to press the three-way, the material forming equipment tonnage is reduced. The hot-pressing tee has a wide adaptability to the material, which is suitable for low carbon steel, alloy steel and stainless steel, especially for large diameter and thick pipe wall.

Division of materials
Carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum alloy, plastic, argon leachate, pvc, etc.
Division of production methods
Top, press, forge, cast, etc.
Classification by manufacturing standards
National standard, electric standard, chemical standard, water standard, American standard, German standard, Japanese standard, Russian standard, GB/T12459-2017, as follows: ASME B16.9, SH3408, SH3409-96, SH3410-96, HG/T21635, DL/T 695, SY/T 0510, DIN 2615.
