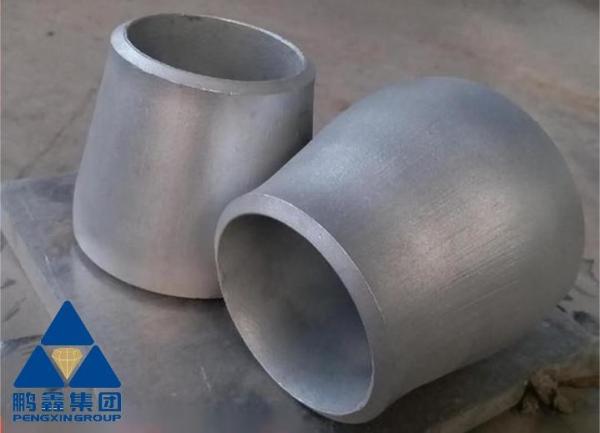

8" *6 " STD ASTM B16.9 A234 WP11 Alloy Steel Concentric Reducer For Pipe, Butt weld end

APPLICATIONS

Chemical process equipment,crude oil stills, gasoline abd fresh wter tanks, marine engineering equipment, values, pumps and fasteners.

Standard: DIN,EN,ASTM,BS,JIS,GB,etc

All buttweld fittings are available in the following material grades:

· Stainless Steel

· A403 304/L 310 316/L 321/H 347/H 410440 904L

· Carbon Steel

· A234 WPB, WPC

· Low Temperature Steel

· A420 WPL6, WPL3

· Alloy Steel

· A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91

· High Yield

· WPHY42, 52, 60, 65, 70

· Duplex & Super Duplex

· A815 UNS 31803, UNS 31254, UNS S32750 UNS S32760

Eccentric / Concentric Reducer Fitting

There are two options available, of Concentric Reducer or Eccentric Reducer.

An Eccentric Reducer, also called a Bell reducer, has two female (inside) threads of different sizes with centers

so designed that when they are joined, the two pieces of pipe are not in line with each other, but they can be

installed so as to provide optimum drainage of the line.

The fitting is designed with the smaller outlet off center to the larger end, allowing it to align with only one side

of the inlet. The reducer fittings are designed to be welded with ease and offer superior strength and leak

resistance.

Eccentric Reducer must be installed with straight side up to prevent trapping air at the pump suction. They are

designed to allow simple connection of different sized pipes. These can be used as pipe reducers, flexible

connectors and vibration eliminators.

Eccentric Reducers eliminate noise and isolate vibration in the pipeline, reduces stress, eliminates electrolysis

and protects against start-up surges.

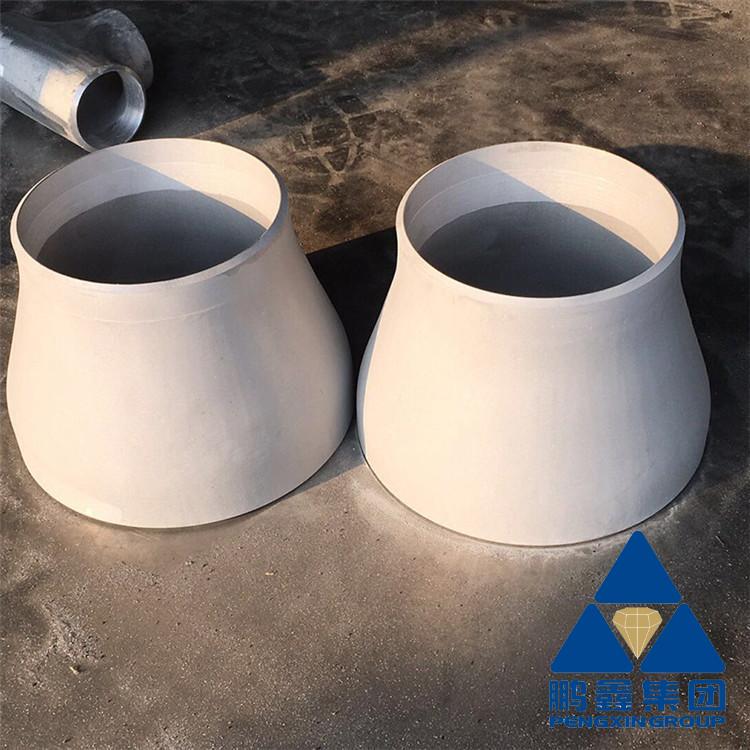

A Concentric Reducer joins the tube sections on the same axis. They connect unequal size pipes that have a

common centerline and are used for TC transitions in vertical tubing.

A Concentric Reducer has different size ends to mate hose or tubing of different diameter that joins tube

sections on the same axis. Since virtually all piping systems go through changes in diameter either in the run

or at the equipment connections, a reducer serves the dual purpose of changing the piping diameter and at the

same time that of handling the expansion, misalignment or vibration problem.

While there are published transition sizes and face to face dimensions, it is seldom that the cataloged sizes

refer to what is required on the jobsite. Hence, the face to face dimensions as well as the two flange sizes are

varied to fit the application. Thus, Custom reducers are easily manufactured as per the specifications.

Our products :carbon steel ,alloy steel ,stainless steel pipes and pipe fittings

such as: long/short radius elbows(EL/ES),straight / reducing tee(TC/TR) ,SO ,WN,PL,BL,SW,TH flanges,pipe end cap,eccentric/concentric reducers ;sprial welded steel pipe (SSAW),seamless steel pipe (SMLS) ,and LSAW pipe!

The sizes:

Elbow	DN15~DN3600
Flange	DN15~DN3600
Tee	DN15~DN3600
Reducer	DN15~DN3600
Seamless Steel pipe	DN15~DN1200
ERW	DN15~DN1400
SSAW	DN200~DN3600
LSAW:	DN300~DN1400
Wall thickness:	SCH10-XXS

HEBEI PENGXIN PIPELINE EQUIPMENT GROUP CO.,LTD.. was established in the early 1990s, is located in China elbow pipe capital "mengcun" golden hinterland New hope. Here north of Beijing and Tianjin, south of Jinan, east Huanghua port, excellent location, ease of access and the unique economic environment for the development of the company provides unlimited opportunities.
After nearly two decades of hard business, Hebei Peng Xin Pipeline Group Ltd. has now developed into a set of tube production, steel logistics, sales and export as one of the group of companies. Which owns Hebei Peng Xin Pipe Group Co., Ltd. Hebei Peng Xin Xin Ding Pipe Group Co., Ltd., Hebei Peng Xin Hua Tuo High Pressure Pipe Group Co., Ltd., Hebei Xin Peng Bo Tao Group Pipe Manufacturing Co., four large-scale companies.

Group covers an area 66,600 square meters, the total assets of 318 million yuan, registered capital of 1.0188 billion yuan, annual production of 30,000 tons pipe fittings, pipe throughput of nearly ten million tons. The company currently employs 628 people, including engineers, economists, accountants 128 people. Widespread branches and offices in major cities in the country, while the company also has independent export right, the products are exported to Europe, America, Southeast Asia, Russia and other countries and regions.

Laid a strong foundation for the development Peng Xin Group, the Group has 5,000 tons of press, large heat treatment furnace, a large IF pushing machine, a large bending machine, beveling machine, sawing machine, lathe, drill press, tee cold extrusion machine, plywood hammer, vertical lathe, large sandblasting machines and other related facilities 316 sets. Has advanced physical and chemical metallurgical, nondestructive testing, material testing equipment more than 40 sets. And has the world's most advanced metallic materials direct reading spectrometer, employing all the national and provincial authorities to obtain recognized qualifications, and in strict accordance with the company's quality assurance system for production traceability. After years of hard work group company has passed the ISO9001 international quality system certification, ISO14001 environmental management system certification, OHSAS18001 occupational health and safety management system certification most authoritative industry certification.

Quality determines survival, the details determine success or failure. Customer satisfaction for the purpose of quality concept, created Peng Xin Group's quality and strength.
Peng Xin Group uphold integrity first, create business opportunities business philosophy. Depending on the product quality and Honor for the group life, years of spot check inspection Peng Xin Group's products are always 100% qualified.
Our main products are electricity, chemical equipment, carbon steel, alloy steel, stainless steel, X-class series and a variety of materials elbows, bends, reducers, tees, crosses, head, flange, bearing plug-in, hangers and other pipeline products. Company carbon steel, alloy steel, stainless steel and other wall thickness, size pipe.

Peng Xin Group is the large seamless steel pipe, straight seam steel pipe, spiral steel pipe, steel pipe logistics base, annual inventory of 38,000 tons or more. Operating Chengdu Steel, Shanghai Baosteel, Tianjin big seamless, Jiangsu Chengde, Longchuan steel mills, Shandong giant, Steel, Anshan Iron and Steel and the United States, Japan, Germany, Italy and other countries products. And to Panzhihua, Chengdu Seamless Steel Tube Plant, Hengyang Valin Steel Tube Co., Ltd., Jiangsu Chengde Steel Tube Co., Ltd. distributor in North China. Simultaneously and professional production 300000, 600000, 1000000 subcritical, supercritical, ultra-supercritical, thermoelectric four pipes and pipe factory piping.

Group products are mainly used in petroleum, chemical, natural gas, nuclear power, thermal power, metallurgy, heat pipe, shipbuilding, construction and other industries. With Datang, Huaneng, Huadian, Guodian, China National Petroleum Corporation, China National Offshore Oil Corporation, rings technology into the Engineering Company, Saiding engineering company, China Lu engineering company, Sinochem Second Construction, Chongqing Chemical Medical Group, Xiamen Xianglu Group, Xinjiang Guinness company, chemical and Thailand, sky, Lu Tien-oriented, Plum MSG, Ershisanye, Shandong Sea Chemical Yongxin petrochemical, large stone technology, Chen Hung chemicals, Wanhua Group etc. has always been a good cooperation.

Peng Xin is its distinctive brand positioning, three-dimensional marketing strategies in the industry leading the way.
Group Company has obtained API, CE, ASME and other international and national certification issued by the General Administration of Quality Supervision, Inspection and China special equipment manufacturing license, the State Power Corporation power plant parts supply network member factory, Hebei Boiler and Pressure Vessel Supervision, Inspection and Supervision, Inspection Unit , China National Petroleum Corporation supplies network member unit of China National Offshore Oil Corporation qualified suppliers, Datang International Network Supplier Membership materials, China Huadian Corporation tendering and procurement network provider group-level member of "China metal materials distribution industry leader ", Hebei Province, taxes hero and many other honors
Challenges facing the industry, Peng Xin Group, adhering to the essence Xeon technology, the service flawless reputation to really sincere business philosophy, and constantly introduce new technologies, develop new projects and seek new areas. In the future, Peng Xin people are to unity, progressive attitude, being in the forefront of pipeline equipment industry to do the industry leader position leading international brand.
