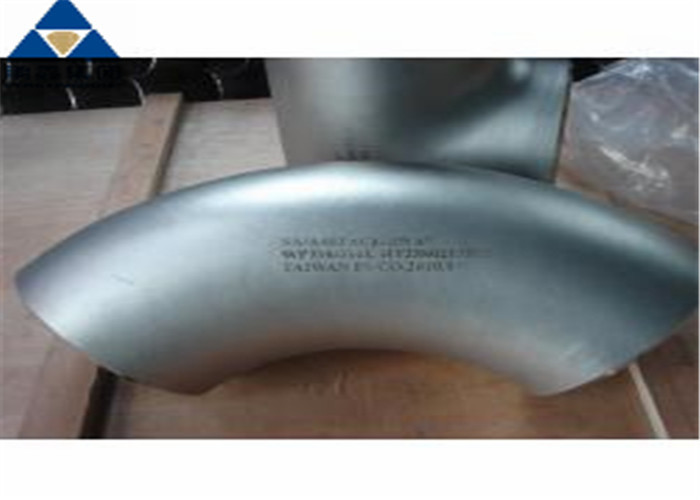

    WP347 3 Inch Steel Pipe Fittings , Stainless 90 Degree Elbow SCH10

    Ask Lasest Price
    Brand Name : HEBEI PENGXIN
    Model Number : WP347,WP304H,WP316L
    Certification : ASME API
    Price : Depending on quantity
    Payment Terms : L/C, , T/T, Western Union, MoneyGram
    Supply Ability : Depending on quantity
    Delivery Time : Depending on quantity
    • Product Details
    • Company Profile

    WP347 3 Inch Steel Pipe Fittings , Stainless 90 Degree Elbow SCH10

    Long Short Radius Pipe Elbow Fittings ,45° 90° carbon steel pipe fittings

    In the pipeline system, the elbow is a pipe fitting that changes the direction of the pipeline. 45 and 90 by angle Three of the most commonly used, in addition to engineering needs including 60 other abnormal angle elbow. The elbow materials are cast iron, stainless steel, alloy steel, malleable cast iron, carbon steel, non-ferrous metals and plastics.

    The way to connect with the pipe is: direct welding (the most commonly used way) flange connection, hot melt connection, fused connection, thread connection and socket connection. According to the production process can be divided into: welding elbow, stamping elbow, push elbow, casting elbow, butt welding bend, etc. Other name :90 degree bend, right angle bend, etc.

    Introduction

    Elbow is a kind of pipe fittings commonly used in plumbing installation, which is used to connect at the bend of pipe and to change the direction of pipe.

    Other names :90 elbow, right angle bend, love bend, punching elbow, pressing elbow, mechanism elbow, welding elbow, etc.

    Purpose: Connect two pipes with the same nominal diameter or different diameter so that the pipes can be turned 90,45,180 and various degrees.

    The bending radius is less than 1.5 times of the diameter of the pipe, and 1.5 times of the diameter of the pipe belongs to the elbow.

    Purpose

    A pipe fitting commonly used in pipe installation to connect two pipes with the same or different nominal diameter to make a certain angle turn, nominal pressure of 1-1.6 Mpa.

    Technical requirements

    • because most of the pipe fittings are used for welding, in order to improve the welding quality, the end part is groove, leaving a certain angle, with a certain edge, this requirement is also more strict, how thick the edge, how much angle and deviation range are stipulated. The surface quality and mechanical properties are basically the same as the pipe. For the convenience of welding, the pipe fittings are the same as the steel type of the connected pipe.
    • 2., all pipe fittings must be surface treated, the internal and external surface of the oxide sheet through shot peening treatment, and then coated with anticorrosive paint. This is for export needs, moreover, in the domestic is also to facilitate transportation to prevent corrosion and oxidation, to do this work.
    • 3. is the requirement of packing for small pipe fittings, such as export, need to make wooden cases, about 1 cubic meter, the number of bends in this box should not exceed one ton, this standard allows suits, that is, large sets and small ones. But the total weight should not exceed 1 ton. For large y, a single package, such as 24" must be a single package. Also is the packing mark, the mark is to indicate the size, the steel number, the batch number, the factory trademark and so on.
    Detailed Product Description
    Standard::304,304L,TP316L,316L,316Ti,321,310S,317L,2205,347etcColor:White Silver Gold
    Types::ElbowSize:1/2"---72"
    High Light:

    Stainless Steel 90 Degree Elbow

    ,

    Butt Welding Elbow


    Elbow Seamless 10” SCH STD LR 90° A420WPL9 ANSI B16.9


    MaterialCarbon SteelTechnicsForgedTypeTee
    Place of OriginChinaModel Number:ElbowPressure45 60 90 120 180
    Wall thicknessSCH10 SCH20 SCH40StandardANSI B16.9
    Delivery Detail7-90 Days

    Specifications

    ANSI B16.9 Elbow
    1.Size:1/2""-72"
    2.Material: A234-WPB
    3.Wall Thickness: SCH10-XXS
    4Certificate:ISO,PED

    We specialized in manufacturing the carbon steel pipe and carbon steel pipe fittings

    (elbows,reducers,tees, pipe caps, flanges) for more than 20 years

    butt welded carbon steel pipe fittings is one of our main products,

    the following are the details for your reference:


    The specification sheet:

    Size1/2"---72"
    Wall Thickness

    SCH10,SCH20,SCH30,STD,SCH40,SCH60,XS,SCH80,SCH100,SCH120,

    SCH140,SCH160,XXS, DIN, JIS standard thickness

    Standard

    ASTMA234,ASTM A420,ANSI B16.9/B16.28/B16.25,ASME B16.9,

    JIS B2311-1997/2312, JIS B2311/B2312, DIN 2605-1/2617/2615,

    GB 12459—99,EN Standard etc.

    Material

    Q235, 20#, 10#, Q345

    A234 WPB, WP5, WP9, WP11,

    ST37.0, ST35.8, ST37.2, ST35.4/8, ST42, ST45, ST52, ST52.4

    STP G38, STP G42, STPT42, STB42, STS42, STPT49, STS49

    ApplicationLow and middle pressure fluid pipeline,boiler, petroleum and natural gas industry,drilling,chemical industry, electric industry,shipbuilding,fertilizer equipment and pipeline, structure, petrochemical, pharmaceutical industry
    SurfaceBlack painting, varnish paint, anti rust oil, hot galvanized, cold galvanized, 3PE, etc.
    PackagePlastic film,wooden cases ,wooden pallet,or on customers' request
    CertificateISO 9001:2008, SGS, BV, etc
    Capacity50,000 tons/year
    Advantages

    1.Reasonable price with excellent quality

    2.Abundant stock and prompt delivery

    3.Rich supply and export experience, sincere service

    4.Reliable forwarder, 2-hour away from port.


    anufacturing Standards

    ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43

    DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

    EN: EN10253-1, EN10253-2


    ASTM A403 /ASME SA403 - Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings


    ASME B16.9 - Factory-Made Wrought Fittings Butt welding


    ASME B16.25- Butt welding Ends


    ASME B16.28- Wrought Steel Short Radius Elbows and Butt welding Returns


    MSS SP-43 - Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

    Pipe Elbow

    Material Grade


    Stainless Steel Elbow; ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L


    Carbon Steel Elbow: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.


    Low Temperature Carbon Steel Elbow: ASTM A420 WPL3, A420 WPL6


    Alloy Steel Elbow: ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91


    Duplex Steel Elbow: ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462


    Nickel Alloy Elbow: ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )


    TOBO is a leading manufacturer and supplier of short radius and long radius elbows.

    The long radius elbows have a center to end distance that is 1.5 times the NPS in inches (R=1.5D), while the short radius is equal to the NPS in inches (R=1.0D).

    Short radius elbows are generally used in tight areas, and long radius elbows are used when space is available and flow is more critical.

    We can also manufacture and supply carbon steel elbows and stainless steel elbows in non-standard size angles such as 60°, 100°, 120° or 150°.
