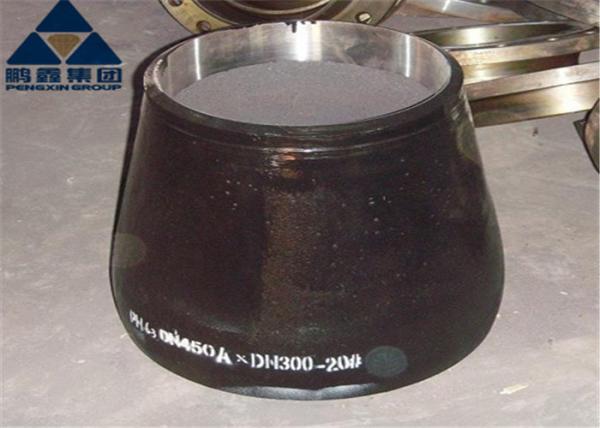

    ASME A860 Eccentric Concentric Reducer

    Ask Lasest Price
    Brand Name : HEBEI PENGXIN
    Model Number : ANSI B16.9, ANSI B16.28, DIN 2605, ISO3419,DIN EN10253,JIS B2312, JIS B2313, MSS SP-25, MSS SP-75, BS1387
    Certification : ISO9001, API,CE
    Price : Depending on quantity
    Payment Terms : T/T
    Supply Ability : 100000Tons per year
    Delivery Time : 2-10weeks
    • Product Details
    • Company Profile

    ASME A860 Eccentric Concentric Reducer

    ASTM / ASME A860 Stainless Steel Reducer / Eccentric Concentric Pipe Reducer


    Form:


    1/8" NB TO 48" NB. (Seamless & Welded)
    Thickness
    SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS & NS available with NACE

    MR 01-75
    Type:
    · Elbows in 45 deg, 90 deg, 180 deg, R=1D,1.5D,3D, 5D, 6D, 8D, 10D & 20D.
    · Eccentric & concentric reducer.
    · Caps & crosses.
    · Equal & unequal tee.
    · Long & short stub end.
    Standard:
    · ASME: ANSI B16.9, ANSI B16.28, MSS SP75
    · DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
    · SGP: JIS B2313
    · EN: EN10253-1, EN10253-2
    Material:
    Stainless Steel : ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L/ etc.
    Carbon Steel : ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/46/52/56/60/65/70 etc.
    Alloy Steel : ASTM A234 WP1/ WP5/ WP9/ WP11/ WP22/ WP91/ etc.
    Other materials : Monel, Nickel, Inconel, Hastalloy, Copper, Brass, Bronze, Titanium, Tantalum, Bismuth,

    Aluminium, High Speed Steel, Zinc, Lead, etc.


    Nominal DiameterOutside DiameterEnd to End
    D1*D2
    DNNPSSeries ASeries BH
    20×153/4×1/226.9×21.325×1838
    20×103/4×3/826.9×17.325×1438
    25×201×3/433.7×26.932×2551
    25×151×1/233.7×21.332×1851
    32×251.1/4×142.4×33.738×3251
    32×201.1/4×3/442.4×26.938×2551
    32×151.1/4×1/242.4×21.338×1851
    40×321.1/2×1.1/448.3×42.445×3864
    40×251.1/2×148.3×33.745×3264
    40×201.1/2×3/448.3×26.945×2564
    40×151.1/2×1/248.3×21.345×1864
    50×402×1.1/260.3×48.357×4576
    50×322×1.1/460.3×42.457×3876
    50×252×160.3×33.757×3276
    50×202×3/460.3×26.957×2576
    65×502.1/2×273.0×60.376×5789
    65×402.1/2×1.1/273.0×48.376×4589
    65×322.1/2×1.1/473.0×42.476×3889
    65×252.1/2×173.0×33.776×3289
    80×653×2.1/288.9×73.089×7689
    80×503×288.9×60.389×5789
    80×403×1.1/288.9×48.389×4589
    80×323×1.1/488.9×42.489×3889
    90×803.1/2×3101.6×88.9-102
    90×653.1/2×2.1/2101.6×73.0-102
    90×503.1/2×2101.6×60.3-102
    90×403.1/2×1.1/2101.6×48.3-102
    90×323.1/2×1.1/4101.6×42.4-102
    100×904×3.1/2114.3×101.6-102
    100×804×3114.3×88.9108×89102
    100×654×2.1/2114.3×73.0108×76102
    100×504×2114.3×60.3108×57102
    100×404×1.1/2114.3×48.3108×45102
    125×1005×4141.3×114.3133×108127
    125×905×3.1/2141.3×101.6-127
    125×805×3141.3×88.9133×89127
    125×655×2.1/2141.3×73.0133×76127
    125×505×2141.3×60.3133×57127
    150×1256×5168.3×141.3159×133140
    150×1006×5168.3×114.3159×108140
    150×906×3.1/2168.3×101.6-140
    150×806×3168.3×88.9159×89140
    150×656×2.1/2168.3×73.0159×76140
    200×1508×6219.1×168.3219×159152
    200×1258×5219.1×141.3219×133152
    200×1008×4219.1×114.3219×108152
    200×908×3.1/2219.1×101.6-152
    250×20010×8273.0×219.1273×219178
    250×15010×6273.0×168.3273×159178
    250×12510×5273.0×141.3273×133178
    250×10010×4273.0×114.3273×108178
    300×25012×10323.9×273.1325×273203
    300×20012×8323.9×219.1325×219203
    300×15012×6323.9×168.3325×159203
    300×12512×5323.9×141.3325×133203
    350×30014×12355.6×323.9377×325330
    350×25014×10355.6×273.0377×273330
    350×20014×8355.6×219.1377×219330
    350×15014×6355.6×168.3377×159330
    400×35016×14406.4×355.6426×377356
    400×30016×12406.4×323.9426×325356
    400×25016×10406.4×273.0426×273356
    400×20016×8406.4×219.1426×219356
    450×40018×16457×406.4478×426381
    450×35018×14457×355.6478×377381
    450×30018×12457×323.9478×325381
    450×25018×10457×273.0478×273381
    500×45020×18508×457529×478508
    500×40020×16508×406.4529×426508
    500×35020×14508×355.6529×377508
    500×30020×12508×323.9529×325508
    550×50022×20559×508-508
    550×45022×18559×457-508
    550×40022×16559×406.4-508
    550×35022×14559×355.6-508
    600×55024×22610×559-508
    600×50024×20610×508630×529508
    600×45024×18610×457630×478508
    600×40024×22610×406.4630×426508
    650×60026×24660×610-610
    650×55026×22660×559-610
    650×50026×20660×508-610
    650×45026×18660×457-610
    700×65028×26711×660-610
    700×60028×24711×610720×630610
    700×55028×22711×559-610
    700×50028×20711×508720×530610
    750×70030×28762×711-610
    750×65030×26762×660-610
    750×60030×24762×610-610
    750×55030×22762×559-610
    800×75032×30813×762-610
    800×70032×28813×711820×720610
    800×65032×26813×660-610
    800×60032×24813×610820×630610
    850×80034×32864×813-610
    850×75034×30864×762-610
    850×70034×28864×711-610
    850×65034×26864×660-610
    900×85036×34914×864-610
    900×80036×32914×813920×820610
    900×75036×30914×762-610
    900×70036×28914×711920×720610
    950×90038×36965×914-610
    950×85038×34965×864-610
    950×80038×32965×813-610
    950×75038×30965×762-610
    1000×95040×381016×965-610
    1000×90040×361016×9141020×920610
    1000×85040×341016×864-610
    1000×80040×321016×8131020×820610
    1050×100042×401067×1016-610
    1050×95042×381067×965-610
    1050×90042×361067×914-610
    1050×85042×341067×864-610
    1100×105044×421118×1067-610
    1100×100044×401118×10161120×1020610
    1100×95044×381118×965-610
    1100×90044×361118×9141220×920610
    1150×110046×441168×1118-711
    1150×105046×421168×1067-711
    1150×100046×401168×1016-711
    1150×95046×381168×965-711
    1200×115048×461220×1168-711
    1200×110048×441220×11181220×1120711
    1200×105048×421220×1067-711
    1200×100048×401220×10161220×1020711

    Note:
    The dimensions conform to GB/T12459, GB/T13401, ASME B16.9, SH3408, SH3409,

    HG/T21635, HG/T21631, SY/T05010 standard.


    ASTM/ASME A860 Stainless Steel Reducer / Eccentric Concentric Reducer
