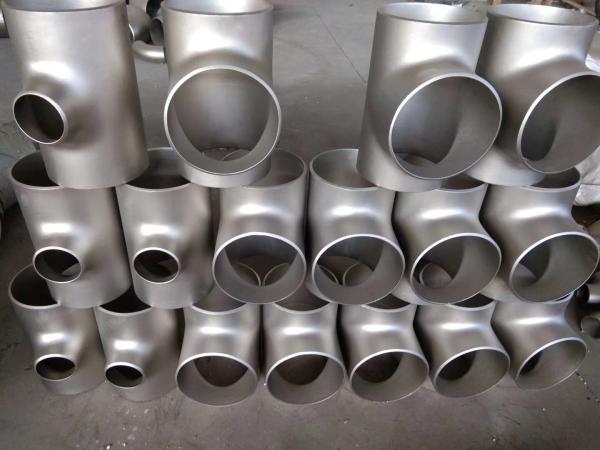

Tees are pipe fittings and pipe connectors. Also known as pipe fittings tee or tee fittings, tee joints, used in the main pipe to branch pipe, change the direction of the fluid.

By process:

1. Hydraulic bulging

Hydraulic bulging of tee is a forming process of branch pipe by axial compensation of metal material. The process is to use a special hydraulic press to inject liquid into the tube blank with the same diameter as the tee, and extrude the tube blank through two horizontal side cylinders of the hydraulic press synchronously. After being extruded, the volume of the tube blank becomes smaller, and the pressure of the liquid in the tube blank increases with the decrease of the tube blank volume. When the pressure required for the expansion of the tee branch pipe is reached, the liquid pressure of the metal material in the side cylinder and tube blank is double The lower branch pipe is expanded out of the cavity and flows along the mold.

2. Hot pressing

Hot pressing forming of tee is to flatten the tube blank larger than the diameter of tee, flatten it to the size of tee diameter, and open a hole in the part of the stretching branch pipe; the tube blank is heated and put into the forming die and then put into the punching die of the stretch branch pipe; under the pressure, the tube blank is compressed radially, and the metal flows towards the branch pipe in the radial compression process and forms the branch pipe under the drawing of the punch. The whole process is formed by radial compression of tube blank and stretching process of branch pipe. Unlike the hydraulic expansion tee, the metal of the hot pressing tee is compensated by the radial motion of the tube blank, so it is also called radial compensation process.

The tonnage of equipment needed for material forming is reduced because of the pressing tee after heating. Hot pressing tee is widely used for materials of low carbon steel, alloy steel and stainless steel, especially for the tee with large diameter and thick pipe wall, which is usually used in this forming process.

By material:

Carbon steel, alloy steel, stainless steel

HEBEI PENGXIN PIPELINE EQUIPMENT GROUP CO.,LTD.. was established in the early 1990s, is located in China elbow pipe capital "mengcun" golden hinterland New hope. Here north of Beijing and Tianjin, south of Jinan, east Huanghua port, excellent location, ease of access and the unique economic environment for the development of the company provides unlimited opportunities.
After nearly two decades of hard business, Hebei Peng Xin Pipeline Group Ltd. has now developed into a set of tube production, steel logistics, sales and export as one of the group of companies. Which owns Hebei Peng Xin Pipe Group Co., Ltd. Hebei Peng Xin Xin Ding Pipe Group Co., Ltd., Hebei Peng Xin Hua Tuo High Pressure Pipe Group Co., Ltd., Hebei Xin Peng Bo Tao Group Pipe Manufacturing Co., four large-scale companies.

Group covers an area 66,600 square meters, the total assets of 318 million yuan, registered capital of 1.0188 billion yuan, annual production of 30,000 tons pipe fittings, pipe throughput of nearly ten million tons. The company currently employs 628 people, including engineers, economists, accountants 128 people. Widespread branches and offices in major cities in the country, while the company also has independent export right, the products are exported to Europe, America, Southeast Asia, Russia and other countries and regions.

Laid a strong foundation for the development Peng Xin Group, the Group has 5,000 tons of press, large heat treatment furnace, a large IF pushing machine, a large bending machine, beveling machine, sawing machine, lathe, drill press, tee cold extrusion machine, plywood hammer, vertical lathe, large sandblasting machines and other related facilities 316 sets. Has advanced physical and chemical metallurgical, nondestructive testing, material testing equipment more than 40 sets. And has the world's most advanced metallic materials direct reading spectrometer, employing all the national and provincial authorities to obtain recognized qualifications, and in strict accordance with the company's quality assurance system for production traceability. After years of hard work group company has passed the ISO9001 international quality system certification, ISO14001 environmental management system certification, OHSAS18001 occupational health and safety management system certification most authoritative industry certification.

Quality determines survival, the details determine success or failure. Customer satisfaction for the purpose of quality concept, created Peng Xin Group's quality and strength.
Peng Xin Group uphold integrity first, create business opportunities business philosophy. Depending on the product quality and Honor for the group life, years of spot check inspection Peng Xin Group's products are always 100% qualified.
Our main products are electricity, chemical equipment, carbon steel, alloy steel, stainless steel, X-class series and a variety of materials elbows, bends, reducers, tees, crosses, head, flange, bearing plug-in, hangers and other pipeline products. Company carbon steel, alloy steel, stainless steel and other wall thickness, size pipe.

Peng Xin Group is the large seamless steel pipe, straight seam steel pipe, spiral steel pipe, steel pipe logistics base, annual inventory of 38,000 tons or more. Operating Chengdu Steel, Shanghai Baosteel, Tianjin big seamless, Jiangsu Chengde, Longchuan steel mills, Shandong giant, Steel, Anshan Iron and Steel and the United States, Japan, Germany, Italy and other countries products. And to Panzhihua, Chengdu Seamless Steel Tube Plant, Hengyang Valin Steel Tube Co., Ltd., Jiangsu Chengde Steel Tube Co., Ltd. distributor in North China. Simultaneously and professional production 300000, 600000, 1000000 subcritical, supercritical, ultra-supercritical, thermoelectric four pipes and pipe factory piping.

Group products are mainly used in petroleum, chemical, natural gas, nuclear power, thermal power, metallurgy, heat pipe, shipbuilding, construction and other industries. With Datang, Huaneng, Huadian, Guodian, China National Petroleum Corporation, China National Offshore Oil Corporation, rings technology into the Engineering Company, Saiding engineering company, China Lu engineering company, Sinochem Second Construction, Chongqing Chemical Medical Group, Xiamen Xianglu Group, Xinjiang Guinness company, chemical and Thailand, sky, Lu Tien-oriented, Plum MSG, Ershisanye, Shandong Sea Chemical Yongxin petrochemical, large stone technology, Chen Hung chemicals, Wanhua Group etc. has always been a good cooperation.

Peng Xin is its distinctive brand positioning, three-dimensional marketing strategies in the industry leading the way.
Group Company has obtained API, CE, ASME and other international and national certification issued by the General Administration of Quality Supervision, Inspection and China special equipment manufacturing license, the State Power Corporation power plant parts supply network member factory, Hebei Boiler and Pressure Vessel Supervision, Inspection and Supervision, Inspection Unit , China National Petroleum Corporation supplies network member unit of China National Offshore Oil Corporation qualified suppliers, Datang International Network Supplier Membership materials, China Huadian Corporation tendering and procurement network provider group-level member of "China metal materials distribution industry leader ", Hebei Province, taxes hero and many other honors
Challenges facing the industry, Peng Xin Group, adhering to the essence Xeon technology, the service flawless reputation to really sincere business philosophy, and constantly introduce new technologies, develop new projects and seek new areas. In the future, Peng Xin people are to unity, progressive attitude, being in the forefront of pipeline equipment industry to do the industry leader position leading international brand.
