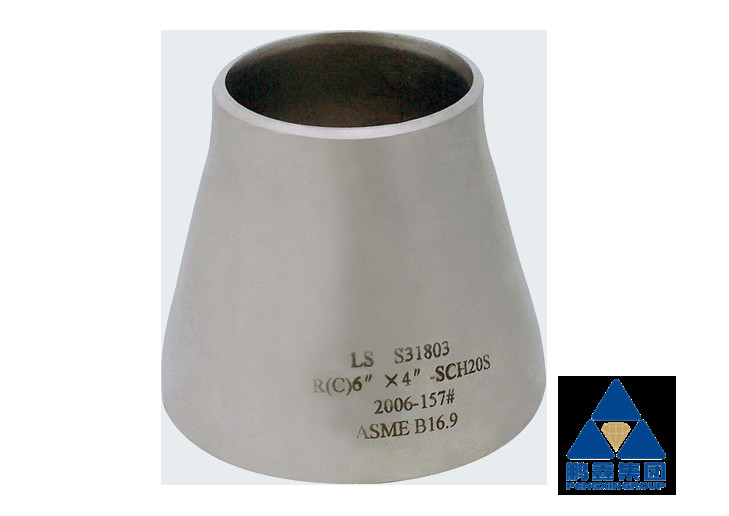

Reducing Shape SCH20S ASME B16.9 Steel Pipe Reducer 6'' X 4''

HEBEI PENGXIN PIPELINE EQUIPMENT GROUP CO.,LTD
Contact Now
    Buy cheap Reducing Shape SCH20S ASME B16.9 Steel Pipe Reducer 6'' X 4'' from wholesalers

    Buy cheap Reducing Shape SCH20S ASME B16.9 Steel Pipe Reducer 6'' X 4'' from wholesalers
    • Buy cheap Reducing Shape SCH20S ASME B16.9 Steel Pipe Reducer 6'' X 4'' from wholesalers

    Reducing Shape SCH20S ASME B16.9 Steel Pipe Reducer 6'' X 4''

    Ask Lasest Price
    Brand Name : PengXin
    Model Number : 316L
    Certification : ASME
    Price : consult
    Payment Terms : T/T
    Supply Ability : 50000Tons per year
    Delivery Time : 2-10weeks
    • Product Details
    • Company Profile

    Reducing Shape SCH20S ASME B16.9 Steel Pipe Reducer 6'' X 4''

    Reducer, used for connection between two pipes of different diameters. According to different shapes, it can be divided into two types: concentric reducer and eccentric reducer.


    Stainless steel reducer is widely used in many industries, such as natural gas, water and electricity, construction, oil, boiler and so on. The forming process of surfacing elbow used in pipeline system is very complex. It needs to be welded according to different materials and uses and cast under certain pressure.


    In the stainless steel reducer, the eccentric stainless steel reducer is mainly used in the pipe diameter of a connecting pipe. The eccentric stainless steel reducer is usually made by shrinkage molding or by compression expansion process. The stamping method can also be used for some special stainless steel reducers. Eccentric stainless steel reducer can not only produce stainless steel pipes of different diameters with steel pipes as raw materials, but also can press some special stainless steel pipes with different diameters by steel plate forming method. According to the size of the inner surface of the stainless steel reducer, the shape of the die is designed, and the steel plate is cut and stretched with the die.


    Main processing technology
    • Raw materials entering the factory
    • Blank cutting
    • Coiled pipe (only in slotted fittings)
    • Welding (only in seam fittings)
    • heating
    • Compression Molding
    • heat treatment
    • Groove processing
    • surface treatment
    • Finished product inspection
    • Logo protection
    • Warehousing and storage

    (Note: there is a pickling and passivation process for stainless steel pipe fittings after groove processing)

    Reducing Shape SCH20S ASME B16.9 Steel Pipe Reducer 6'' X 4''Reducing Shape SCH20S ASME B16.9 Steel Pipe Reducer 6'' X 4''Reducing Shape SCH20S ASME B16.9 Steel Pipe Reducer 6'' X 4''Reducing Shape SCH20S ASME B16.9 Steel Pipe Reducer 6'' X 4''Reducing Shape SCH20S ASME B16.9 Steel Pipe Reducer 6'' X 4''Reducing Shape SCH20S ASME B16.9 Steel Pipe Reducer 6'' X 4''Reducing Shape SCH20S ASME B16.9 Steel Pipe Reducer 6'' X 4''Reducing Shape SCH20S ASME B16.9 Steel Pipe Reducer 6'' X 4''Reducing Shape SCH20S ASME B16.9 Steel Pipe Reducer 6'' X 4''Reducing Shape SCH20S ASME B16.9 Steel Pipe Reducer 6'' X 4''

    Product specificationsDN15-DN2000 (The diameter of the large and small ends of the rolled seam buffer can reach 3000mm)
    Material rangeCarbon steel, chromium molybdenum steel, low alloy steel, all kinds of stainless steel
    Guarantee of main equipment and tooling

    1,5000T Press (mainly used for molding)

    2,500T Press (mainly used for molding)

    3,315T Press (mainly used for molding)

    4,150T Press (mainly used for molding)

    5,2 gas heating furnaces

    6,1 gas heating furnace

    7,1 pipe blanking machine

    8,Machining equipment:

    • Lathe: Two C630
    • Lathe:One CW6163C
    • Lathe:One CT61100A
    • Milling machine: One a6232A

    9,heat treatment:

    • 1Trolley type fuel oil heat treatment furnace, effective heating area of 8 square meters
    • Trolley type box type resistance furnace RT9-80×1500×60

    10,2 sets of sand blasting equipment

    11,One set of air compressor and one set of liquid cooling pool

    12,One 2.4m plate bending machine

    13,14 argon arc welding and manual arc welding machines

    14,2 welding rod drying equipment

    15,260 sets of die pressing mould for reducer

    16,One stainless steel pickling tank

    17,One manual mouth grinding machine (for large diameter groove treatment)

    18,Two plasma cutting machines


    Reducing Shape SCH20S ASME B16.9 Steel Pipe Reducer 6'' X 4''
