Brand Name : | HEBEIPENGXIN |
Model Number : | ASTM A519 SAE1026 Alloy Steel Pipe, OD 180mm, Cold Drawn, for Mechanical Service. |
Certification : | ASME |
Price : | Depending on quantity |
Payment Terms : | T/T |
Supply Ability : | 100000 Tons per year |
Delivery Time : | 2-10weeks |

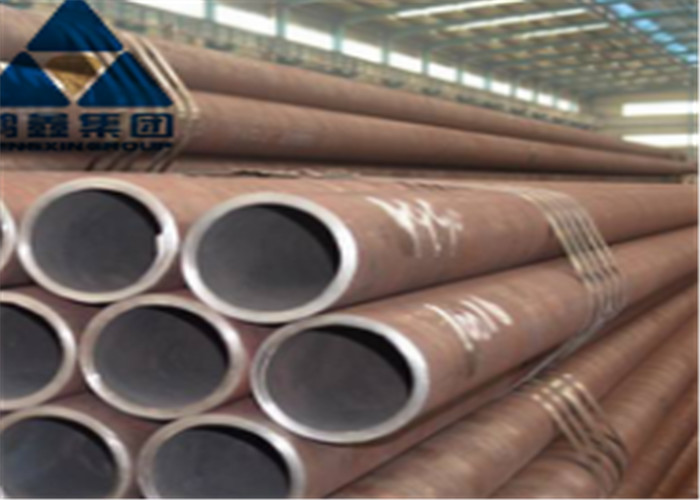

ASTM A519 SAE1026 Alloy Steel Pipe, OD 180mm, Cold Drawn, for Mechanical Service.
Introduction
Alloy steel pipe is mainly used in power plant, nuclear power plant, high pressure boiler, high temperature superheater and reheater, etc.
Description
Alloy seamless steel pipe (Seamless Steel Tube) with hollow
section, no joints around the strip steel. The steel pipe has a
hollow section and is widely used as a pipeline for conveying
fluid, such as oil, natural gas, gas, water and some solid
materials. Compared with solid steel such as round steel, alloy
seamless steel pipe is light weight when bending and torsion
strength is the same. It is an economic section steel, which is
widely used in the manufacture of structural parts and mechanical
parts, such as oil conveying, stair handrails, bicycle frames and
steel scaffolding used in construction. Making ring parts with
alloy seamless steel pipe can improve material utilization,
simplify manufacturing process, and save material and processing
time, such as rolling bearing ring, Jack sleeve and so on. At
present, steel pipe has been widely used to manufacture. Alloy
seamless steel pipe or all kinds of conventional weapons
indispensable materials, gun barrel, barrel and so on must be made
of steel pipe. In addition, the ring section under internal or
external radial pressure, the force is more uniform, therefore,
most alloy seamless steel pipe is a circular pipe.
Alloy tubes are roughly made of Mn,27SiMn,40Cr,12-42CrMo 16Mn12Cr1MoV,T91:16-50 27SiMn 30CrMo 15CrMo 20G Cr9Mo 10CrMo910 15Mo3 15CrMoV 35CrMoV 45CrMo ,15CrMoG,12CrMoV,45Cr,50Cr,45CrNiMo, etc.
Production process
Hot rolling (extruded seamless steel pipe): pipe billet → heating →
perforation → three-roll oblique rolling, continuous rolling or
extrusion → pipe → diameter (or diameter reduction) cooling pipe
straightening → hydraulic test (or flaw detection) marking →
storage.
Cold drawing (rolling) seamless steel pipe: round tube billet →
heating → perforation → head → annealing → pickling → oiling
(copper plating), multi-pass cold drawing (cold rolling)→ billet
tube heat treatment, straightening → water pressure test (flaw
detection) marking → storage.
Classification
Seamless steel pipe for structure: mainly used in general structure
and mechanical structure. Its representative material (brand):
carbon steel 20,45 steel; alloy steel
Q345,20Cr,40Cr,20CrMo,30-35CrMo,42CrMo.
Seamless steel pipe for conveying fluid: mainly used for conveying
fluid pipes on engineering and large equipment. representative
material (brand number) is 20, Q345, etc.
Seamless steel pipe for low medium pressure boiler: mainly used in
industrial boiler and domestic boiler to transport low medium
pressure fluid pipeline. Representative material is 10,20 steel.
Seamless steel pipe for high pressure boiler: It is mainly used for
high temperature and high pressure conveying fluid header and
pipeline on power station and nuclear power plant boiler.
Representative material is 20 G,12Cr1MoVG,15CrMoG, etc.
Carbon steel and carbon manganese steel seamless steel pipe for
ship: mainly used for ship boiler and superheater I,II grade
pressure resistant pipe. Representative material is 360,410,460
steel grade etc.
Seamless steel pipe for high pressure chemical fertilizer
equipment: mainly used for conveying high temperature and high
pressure fluid pipeline on chemical fertilizer equipment.
representative material is 20,16 Mn,12CrMo,12Cr2Mo etc.
Seamless steel pipe for petroleum cracking: boiler, heat exchanger
and its conveying fluid pipeline mainly used in petroleum smelter.
and its representative material is 20,12 CrMo,1Cr5Mo,1Cr19Ni11Nb,
etc.
Seamless steel pipe for gas cylinders: mainly used to make various
gas and hydraulic cylinders. Its representative material is 37
Mn,34Mn2V,35CrMo and so on.
Hot rolled seamless steel pipe for hydraulic prop: mainly used to
make coal mine hydraulic support and cylinder, column, and other
hydraulic cylinder, column. and its representative material is
20,45,27 SiMn etc.
High pressure seamless steel pipe for diesel engine: mainly used
for high pressure tubing of diesel engine injection system.
Generally, the steel pipe is cold-drawn pipe, its representative
material is 20 A.
Cold drawn or cold rolled precision seamless steel pipe: mainly
used for mechanical structure, carbon pressure equipment, high
dimensional accuracy, good surface finish steel pipe. Its
representative material 20,45 steel and so on.
Material
12Cr1MoV,P22(10CrMo910) T91, P91, P9, T9, WB36, Cr5Mo (P5, STFA25,
T5,)15CrMo (P11, P 12, STFA22),13CrMo44, Cr5Mo ,15CrMo ,25CrMo
,30CrMo ,40CrMo.
Implementation criteria
DIN17175-79,JISG3467-88,JISG3458-88,GB5310-2008,GB9948-2006,ASTMA335/A335m,ASTMA213/A213m.
Chinese name | 合金无缝钢管 | characteristic | thermostability |
type | steel pipe | superiority | High performance |
classify | seamless steel tube | Application industry | Electricity, boilers and other industries |
![]() |
